Build Time: Up to 6 Weeks

The DD-EFI 12.3″ Widescreen Digital Dash is the first fully Plug-N-Play display designed for use with any MegaSquirt-equipped vehicle. Featuring a 12.3″ ultra-wide, high-resolution screen, it delivers expansive space for custom dashboard layouts in a compact, all-in-one enclosure.

Built-in GPS Module

• Real-time vehicle speed

• Latitude/Longitude tracking

• Fuel economy, trip meter, odometer

Software & Storage

• Full version of TunerStudio for in-dash tuning

• MegaLogViewer and AnyDesk pre-installed

• 32GB internal storage for automatic datalogging

• Auto-save of tune files

• Configurable sleep mode and delayed shutdown (default 60 min)

What’s Included

• DD-EFI 12.3″ Digital Dash

• Full-color LCD screen

• Internal GPS

• 32GB internal storage

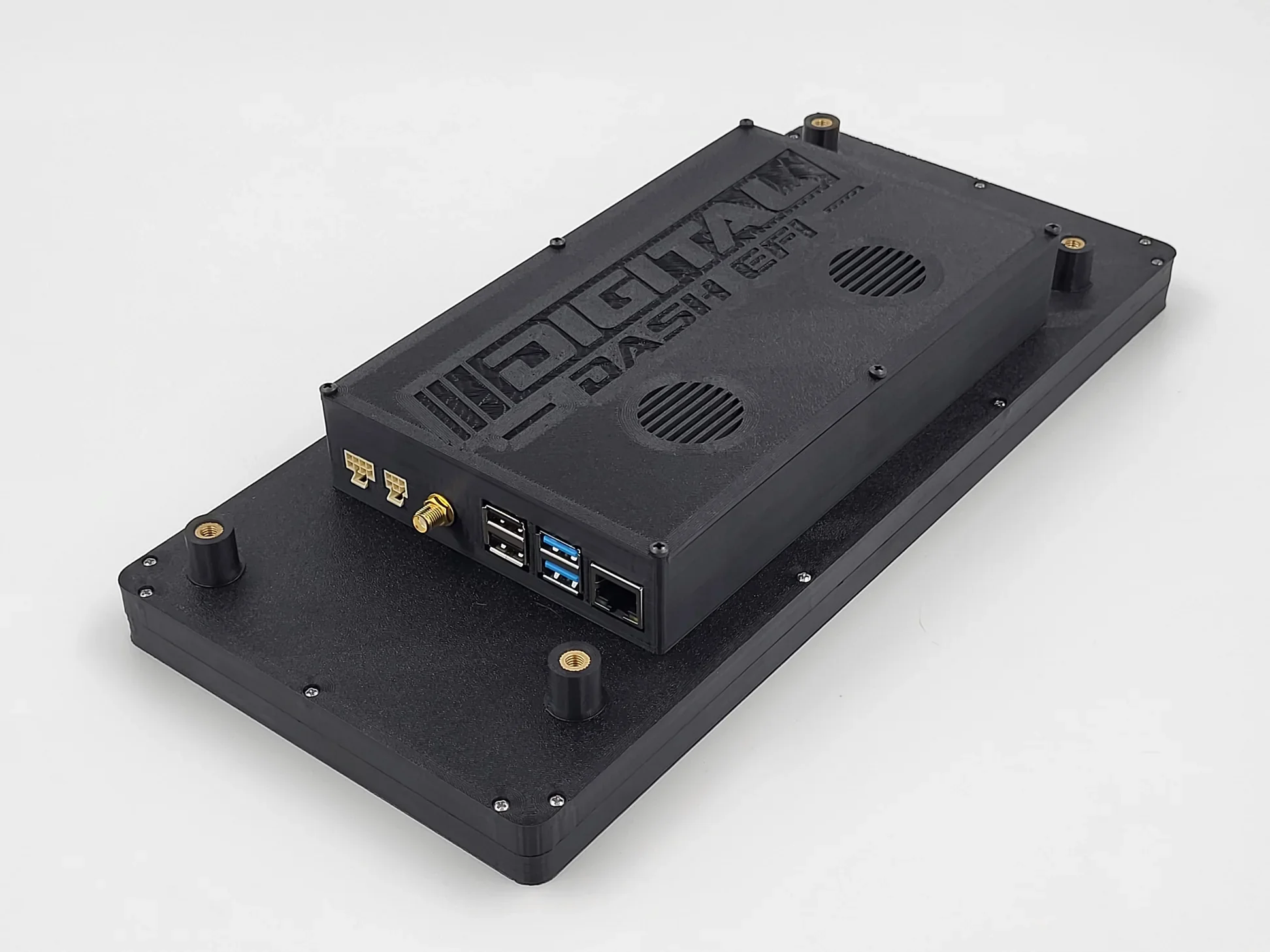

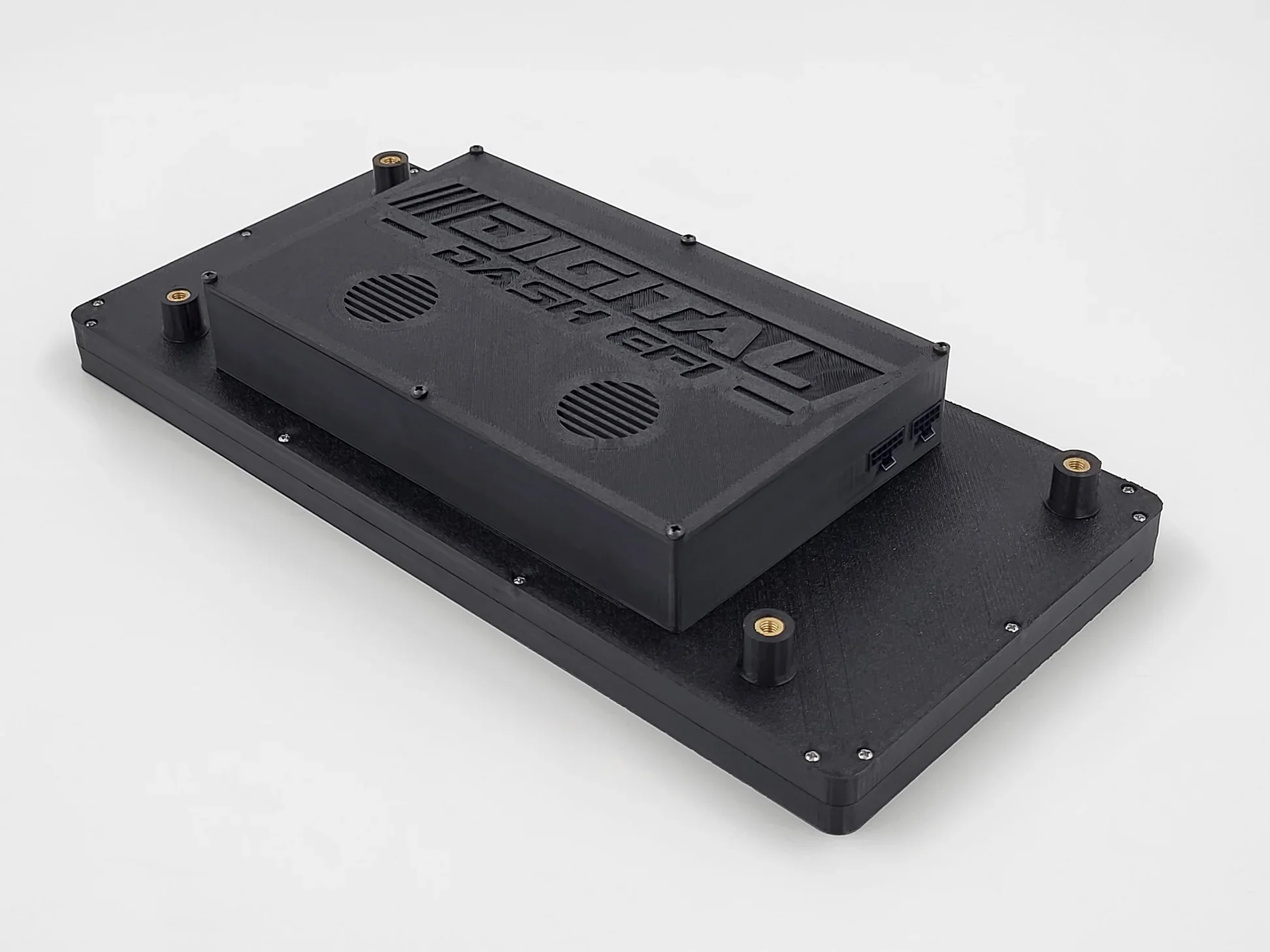

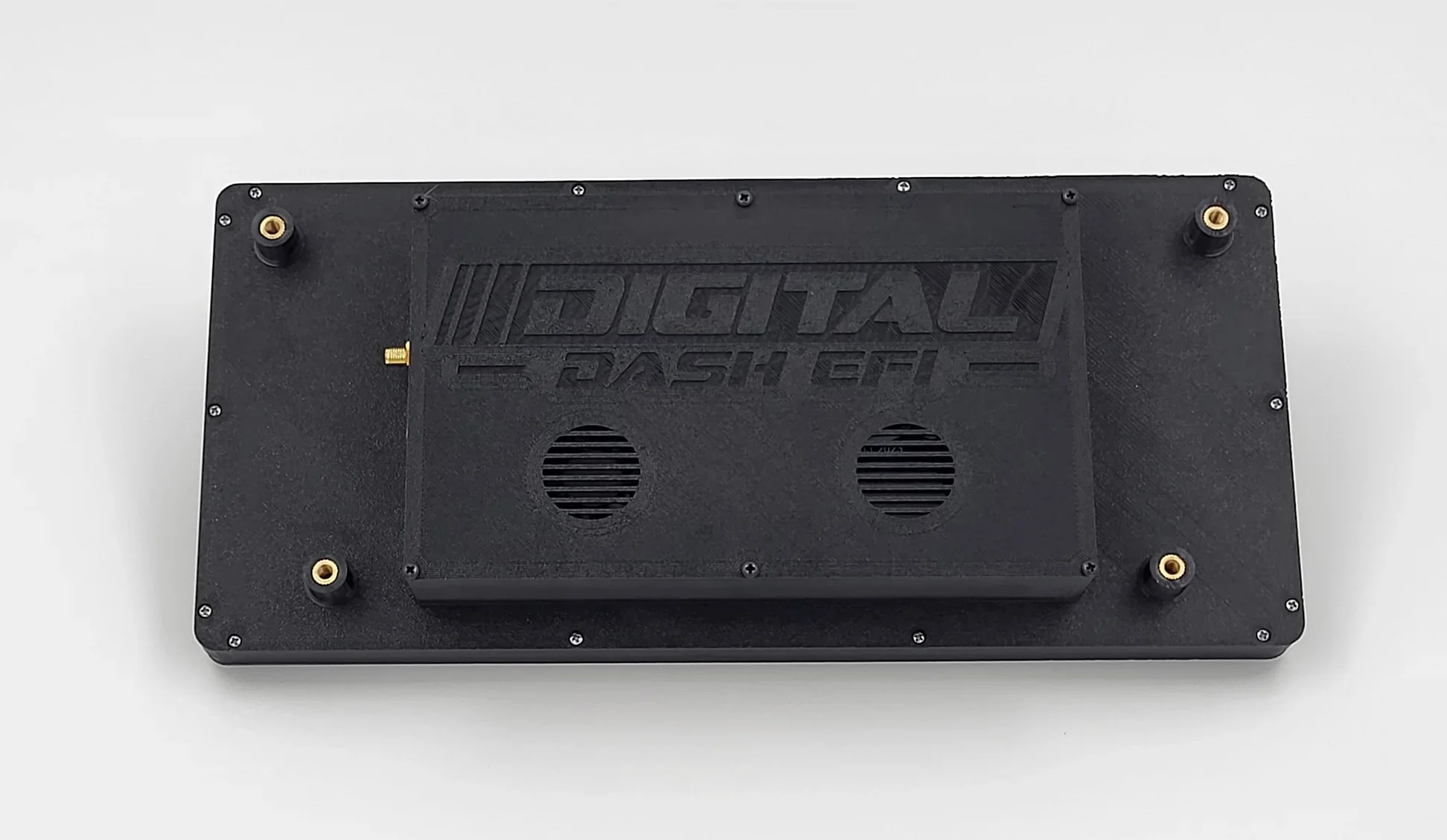

• Universal mount with 4 metal-threaded bosses

• Power supply wiring


• Pre-installed software: TunerStudio, MegaLogViewer, AnyDesk

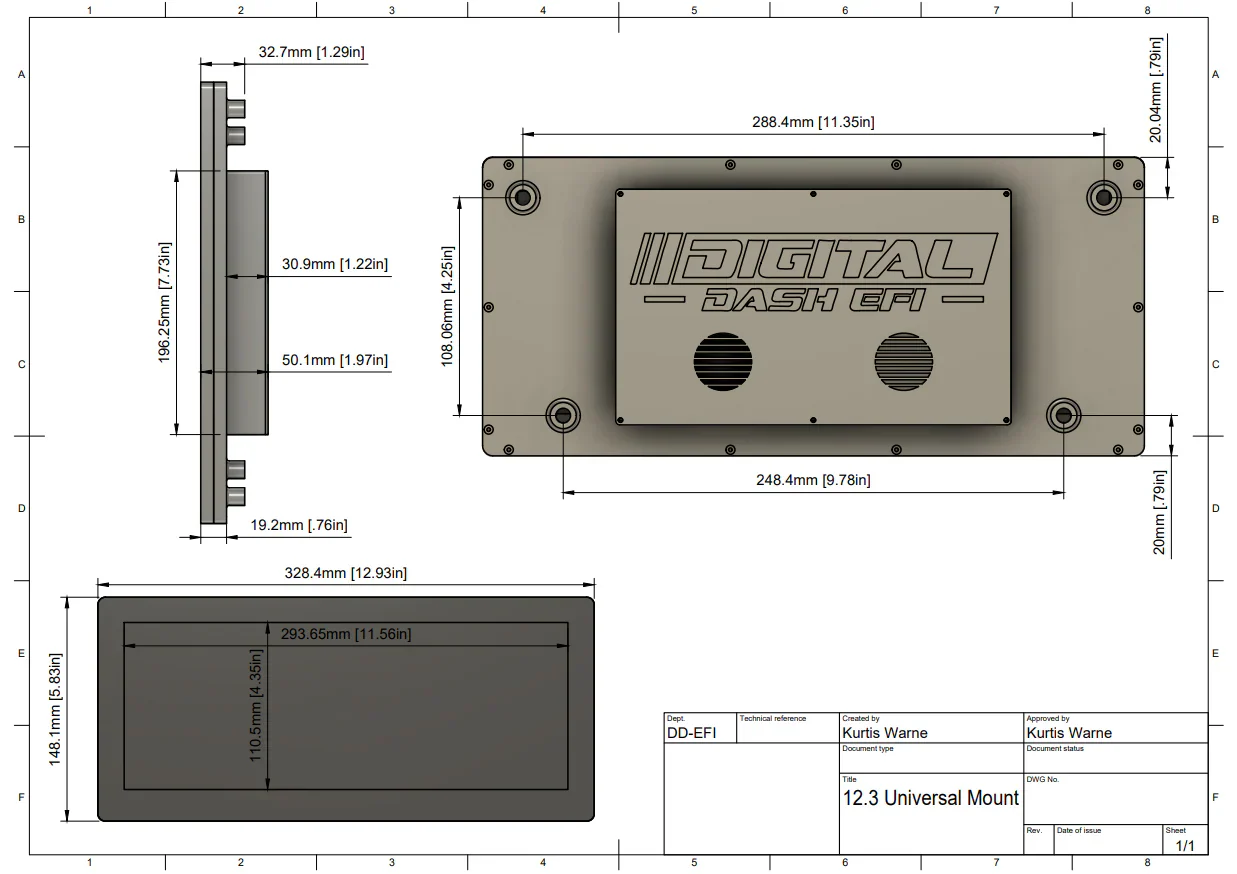

Digital Dash Dimensions

• 12.3″ Surround: 5.85″ (H) × 12.93″ (W)

• Display Area: 4.35″ (H) × 11.56″ (W)

• DD-EFI Computer: 5.125″ (H) × 7.73″ (W) × 1.22″ (D)

• Overall Depth: 2″
