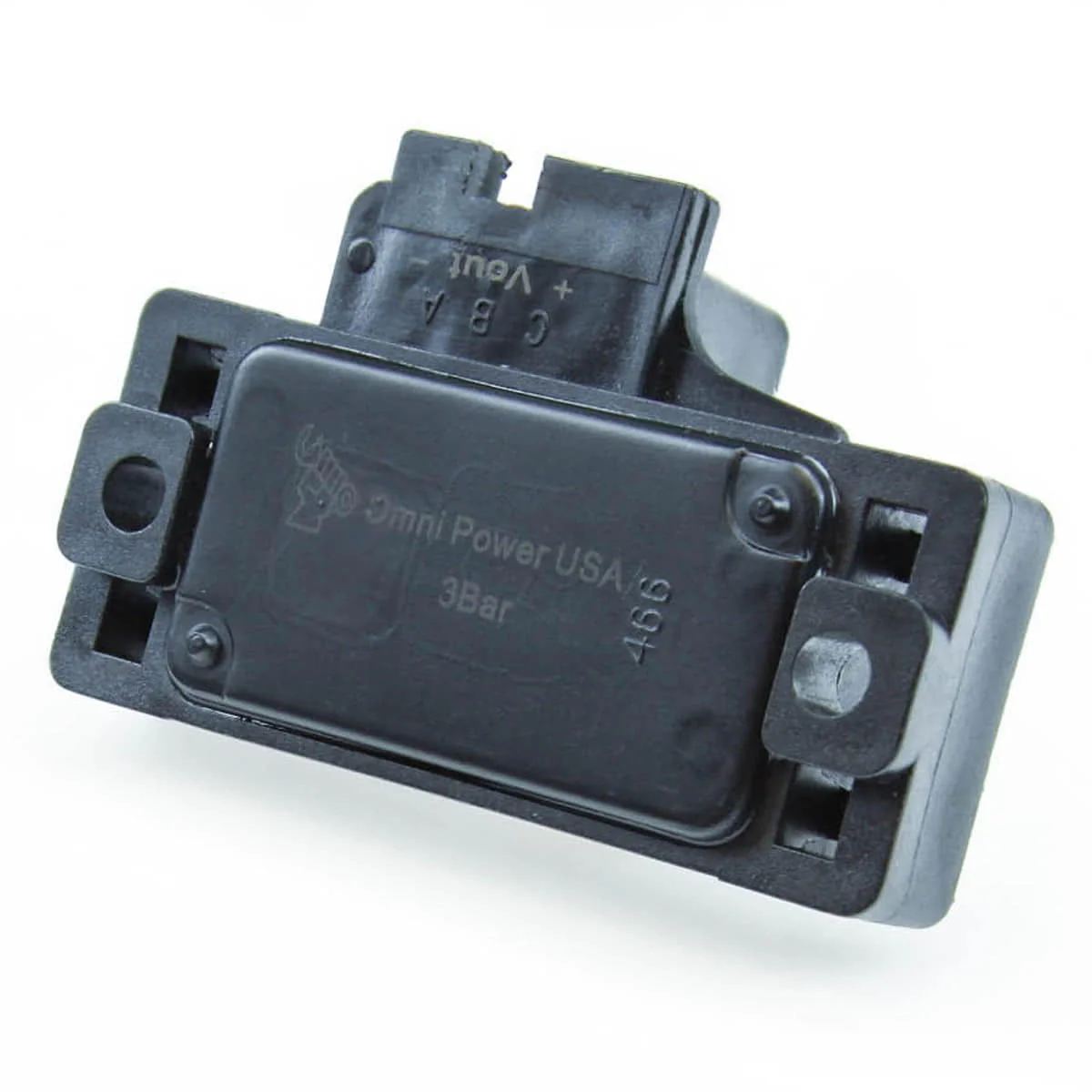

This GM 3-Bar MAP Sensor allows you to monitor up to 29 psi of boost pressure, making it an excellent choice for boosted applications. It offers accuracy and reliability, and it is frequently used with MegaSquirt ECUs, particularly in turbocharged or supercharged vehicles.

Features:

• Measures pressure from 1 Bar to 3 Bar (absolute)
• Reliable sensor for forced induction applications
• Ideal for use with MegaSquirt and other aftermarket ECUs
• Fits most GM vehicles equipped with 3-Bar MAP sensors

Specifications:

• Pressure Range: 1 Bar to 3 Bar (14.7 psi to 29 psi boost)
• Connector: 3-pin weatherproof connector
• Input Voltage: 5V
• Output Voltage: 0.1V to 4.9V (linear output)

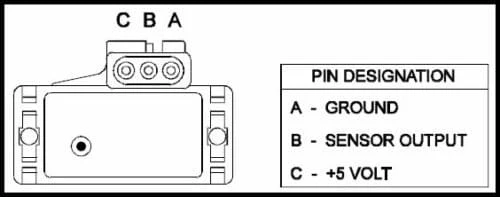

Wiring:

• Pin A: Sensor Ground
• Pin B: Output Signal to ECU
• Pin C: 5V Vref

Calibration:

• Calibration Type: linear
• 0V = 1.1 kPa
• 5V = 315.5 kPa

TunerStudio Setup

• Location: Tools> Calibrate MAP/Baro
• Steps:
  • Common MAP Sensors: GM 3-Bar / MPXH6300
  • Click ‘Burn’ to save calibraion to the MegaSquirt ECU

Included in Box:

• GM 3-Bar MAP Sensor
• Depends on option chosen:
  • Connector & Pins
  • 6″ Pigtail
